benchmarks

As the compressed-image library is intended for high-performance computing, the performance and memory usage is one of the foremost concerns.

Below you can find benchmarks generated using the benchmark/ subfolder on the github repository.

Some, but not all, of the images used for generating these graphs can be found on this google drive. To run the benchmarks yourself make sure to copy the images into the benchmark/ folder after which the benchmarks will automatically instantiate.

Each of the benchmarks were repeated 5 times and verified on two different machines, for the benchmarks you can see below the following machine was used:

CPU: AMD Ryzen 9950x

RAM: 96GB DDR4 3200MHz

Drive: Samsung 980 1TB NVMe

Graphs

Below you can see some graphs comparing both the execution time and average memory usage comparing compressed-image and OpenImageIO during read of files.

As can be seen, while speed is largely equal, if not slightly favoring the compressed-image library, the average memory usage during the read is significantly lower. This allows much larger images to be pulled into memory at once at very comparable performance.

These memory savings can largely be attributed to the chunking of data, only ever loading a slice of an image into memory while compressing the data as we go. This is also the primary reason why the read performance is comparable to that of OpenImageIO. Compressing data on the fly is cheaper than having to allocate all of it. In fact, the read() methods of compressed-image use OIIO under the hood.

Where’s the catch?

This all sounds great! But where’s the catch?

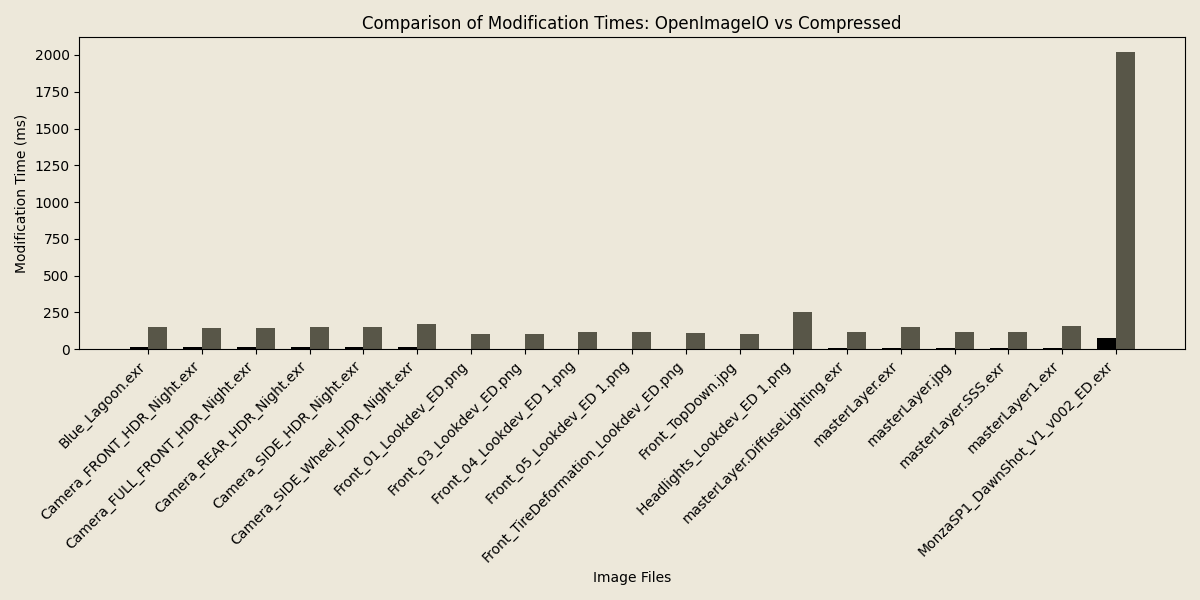

While read (and in the future write) performance is largely similar as it is memory-bound rather than cpu-bound, modifying the images later does invoke the cost of de- and re-compressing the data which you would not have to pay if you had the same data in memory as an uncompressed buffer.

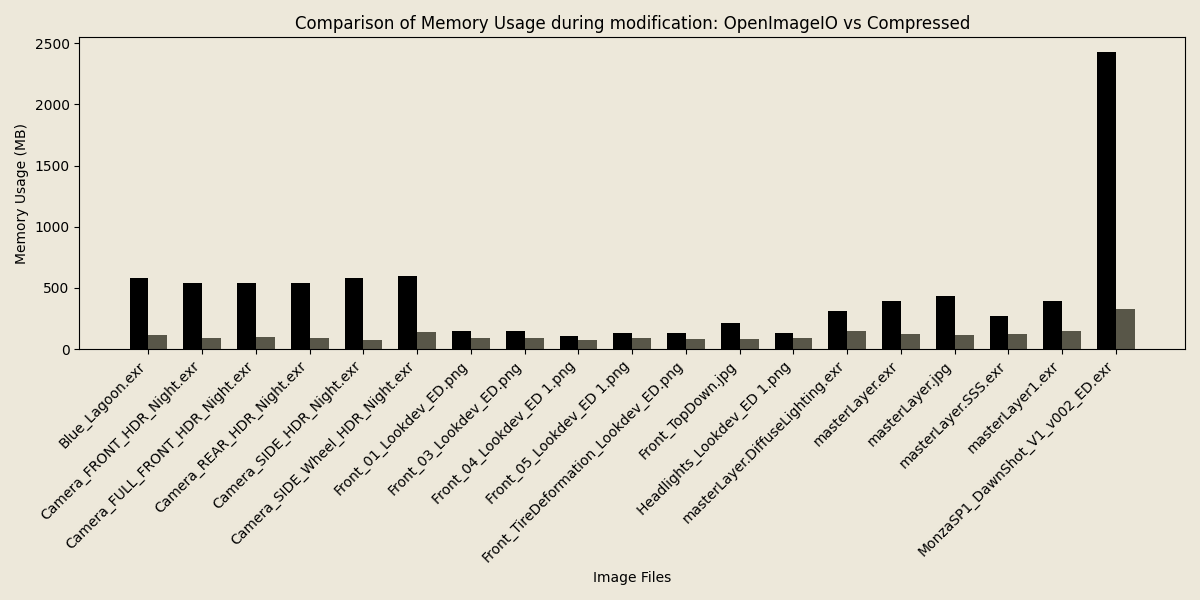

However, as before, the memory usage during these operations is still significantly reduced.

What can we do?

There are some ways to mitigate these limitations in modification speed when using the compressed-image library. Most prominently, the cpp compressed::image::read functions have overloads taking a function callback that can be used to perform operations on the image between the read and compression stage.

This is significantly more performant than first reading the image, and then modifying and should be the go to method when you know ahead of time what operations you want to perform on an image/channels. An example of this would be color space conversions.

For more information, please refer to: image.

Note

These callbacks will also come to the python api as well as the write functions in future releases.
